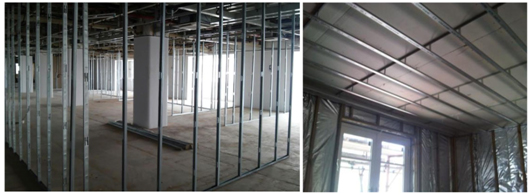

GI Frame Suspended Ceiling System

Metal fumes suspended Ceiling which includes Diamond Frames perimeter channel of size 0.55mm thick (having one flange of 20mm and another flange of 30mm and a web of 28mm) along with the Perimeter of ceiling, Screw fix to brick! Block wall / Partitions with the help of nylon sleeves then Suspending Diamond Frames intermediate channel of size (0.80mm thick with two equal flanges each 15mm) from the soffit at 900mm centres with ceiling angle (0.55mm*10mm*25mm) fixes to soffit with the help of soffit cleat and Rawl Plug then a Diamond Frames Ceiling Section 0.55mm thick having web of 80mm and two flanges of 26mm each with leps of 10.5mm are then fixed to the layer of 12mm thick Plaster board (Strong Core and Strong Paper Bonding) is then screw to Ceiling Section with the help of 25mm Drywall Screw at 300mm interval.

Important point to be noted during the execution:

1. At the time of installation of frame level, it must  be checked thoroughly and Kerosene to be used inside the transparent tube instead of water.
2. Quality Rawl Plug to be used and Ceiling Angle to be suspended from soff it cleat with the help 12.5mm long nut bolt.
3. Every junction of intermediate channel and ceiling section connecting clip must be used.
4. Any cut open like AC Grill, Spot Light etc. Plaster Board open edge to be protected with the help of additional frame (By Diamond Frames).
